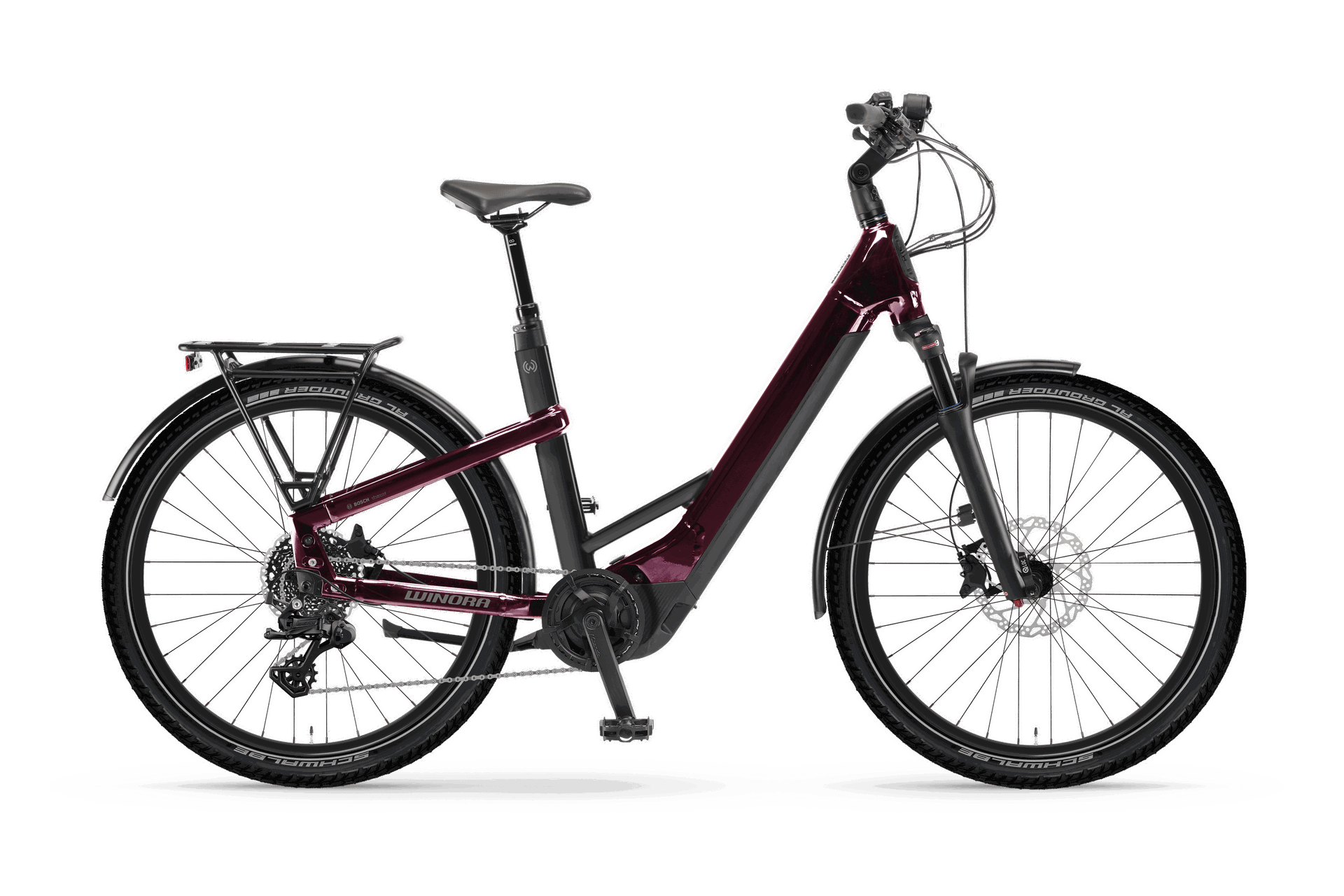

Winora Yakun X10E - Low darkred 2024 Bosch 625KW size L

• Brand: Winora
• Frame: Winora aluminium 6061, 27.5"
• Frame shape: Low
• Model name: Yakun X10E
• Total perm. weight: 130
• Frame height: 55
• Fork: SR Suntour XCM32 ATB NLO DS, steel spring, 80mm
• Dynamo: via system battery
• Mudguard: Curana Apollo 65, aluminium
• Head light: Herrmans MR9, 60 Lux
• Head set: WINORA A-Head Tapered
• Lock: Abus upgradable over Plus System
• Taillight: Spanninga Pimento XE Brakelight

Gear shift and brakes

• Gear shift: Microshift Advent X RD-M6205M, 10 gears, Advent X SL-M9505-R, trigger switch
• Chain: KMC e10S
• Brakes: Shimano Deore BR-MT410 180mm, 180mm / 180mm
• Brake lever: Shimano BL-MT402, aluminium
• Chain guide: Nylon directmount
• Crank arm: Winora forged

Propulsion

• Drive unit: Bosch Performance CX Smart System, 250W, 25km/h, 85Nm
• Charger: Bosch
• Battery: Bosch PowerTube 625Wh
• Battery capacity: 625
• Display: Bosch Kiox 300 + LED Remote
• Engine manufacturer: Bosch
• Engine torque: 85

Wheels and wheel components

• Rims: Schürmann Yak25, eyeleted, Hollow section rim, aluminium
• Carrier: WINORA system carrier, HD, MIK

Handlebar and saddle

• Saddle: Selle Royal Vivo
• Handlebar: WINORA Ergoriser, oversize, 720 mm
• Grips: Velo Ergogriff

Geometry

• Seat tube length: 550
• Seat tube angle: 78
• Head tube length: 180
• Head tube angle: 70.5
• Chain stay length: 472
• Bottom bracket drop: -60
• Reach: 484
