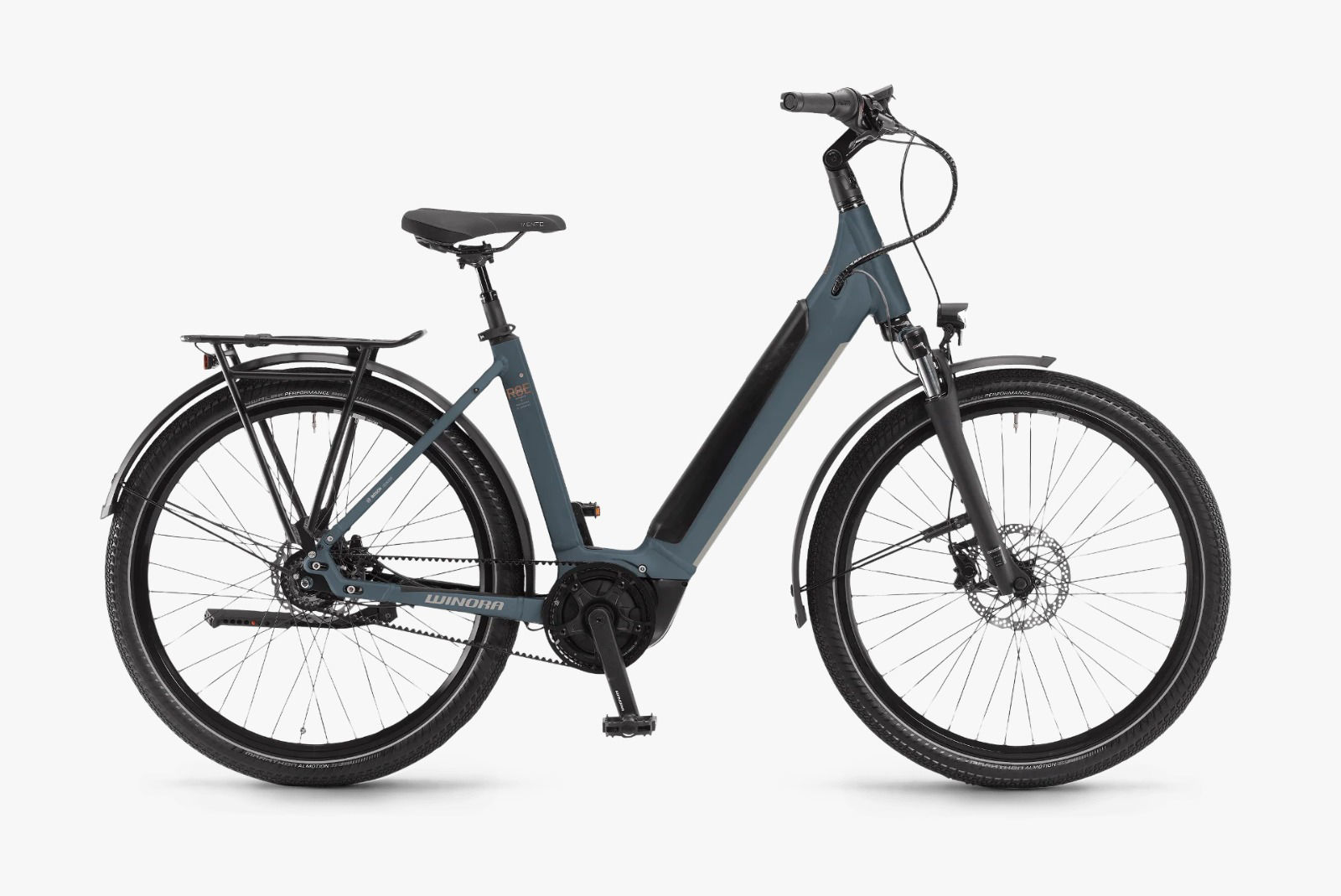

Winora Sinus R8Ef - Low

• Brand: Winora
• Frame: Winora aluminium 6061, 27.5"
• Frame shape: Low
• Model name: Sinus R8Ef
• Total perm. weight: 130
• Frame height: 46, 50, 54
• Fork: RST Volant, 60mm
• Dynamo: via system battery
• Mudguard: SKS, chromoplastics
• Head light: Herrmans H-Black MR-GO, 30 lux
• Head set: A-Head Tapered
• Lock: Abus upgradable over Plus System
• Taillight: AXA Juno Ebike
• Kick stand: Ursus, adjustable
• Travel front: 60

Gear shift and brakes

• Gear shift: Shimano Nexus, 8 gears, Nexus, twist shifter
• Rear sprocket: Gates sprocket, 24 teeth
• Chain: Gates CarbonDrive
• Brakes: Tektro T275, aluminium, 180mm / 160mm
• Brake lever: Tektro T275, aluminium
• Crank arm: Winora forged

Propulsion

• Drive unit: Bosch Performance Line Smart System, 250W, 25km/h, 75Nm
• Charger: Bosch
• Battery: Bosch PowerTube 500Wh
• Battery capacity: 500
• Display: Bosch Intuvia 100 + LED Remote
• Engine manufacturer: Bosch
• Engine torque: 75

Wheels and wheel components

• Tyres: Schwalbe Marathon Almotion, 55-584, puncture protection, Reflective stripes
• Rims: Ryde Zac421, eyeleted, Hollow section rim, aluminium
• Tube: Dunlop valve
• Spokes: Sapim Leader
• Wheel size: 27.5
• Wheelhub: Alu hub, Shimano Nexus
• Carrier: Racktime RT-336, SnapIt

Handlebar and saddle

• Saddle: Selle Royal
• Seat post: XLC, patent suspension, 31.6 mm, aluminium
• Handlebar: Ergobar, oversize, 640 mm
• Grips: Herrmans Click Ergo - lock on grips
• Stem: XLC A-head adjustable, A-head, Handlebar diameter: 31.8 mm

Geometry

• Top tube length (horizontal): 652, 661, 671
• Seat tube length: 460, 500, 540
• Seat tube angle: 73.5
• Head tube length: 190, 195
• Head tube angle: 70
• Chain stay length: 475
• Bottom bracket drop: -60
• Wheelbase: 1169, 1179, 1189
• Reach: 428, 438, 447
• Stack: 668, 673
• Seat tube offset: 0
• Stand-over height: 45, 46
