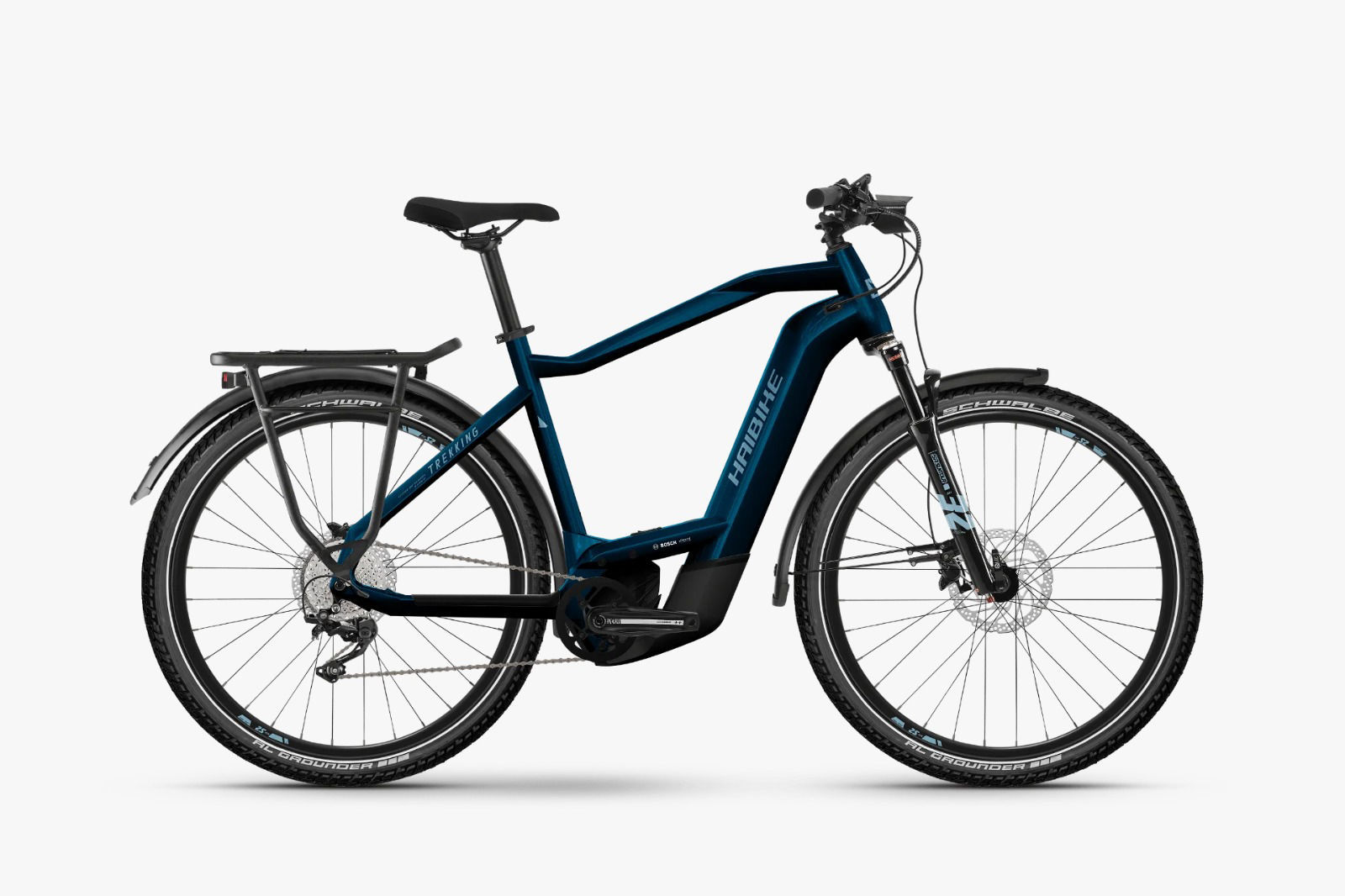

Haibike Trekking 8 - High High GLOSS_ROY BLUE_MET SILVER 2023

• Brand: Haibike
• Frame: Haibike aluminium, 27.5"
• Frame shape: 66_6
• Model name: Trekking 8
• Total perm. weight: 130
• Frame height: 50, 54, 58, 62
• Fork: SR Suntour Mobie 25 LOR Lockout, steel spring, 100mm
• Dynamo: via system battery
• Mudguard: SKS, chromoplastics
• Head light: Haibike Skybeamer 300, 100 lux
• Head set: A-Head Tapered
• Taillight: AXA Juno Ebike
• Kick stand: Ursus, adjustable
• Travel front: 100

Gear shift and brakes

• Gear shift: Shimano Cues U6000, 11 gears, Cues U6000, rapidfire
• Rear sprocket: Shimano Cues LG400, 11-50 teeth
• Chain: Shimano Cues LG500
• Brakes: Shimano MT400, aluminium, 180mm / 180mm
• Brake lever: Shimano MT401-3, aluminium
• Crank arm: Haibike geschmiedet

Propulsion

• Drive unit: Bosch Performance CX Smart System, 250W, 25km/h, 85Nm
• Charger: Bosch
• Battery: Bosch PowerTube 750Wh
• Battery capacity: 750
• Display: Bosch Kiox 300 + LED Remote
• Engine manufacturer: Bosch
• Engine torque: 85

Wheels and wheel components

• Tyres: Schwalbe Al Grounder Performance, 60-584, Reflective stripes
• Rims: Rodi Tryp 30, eyeleted, Hollow section rim, aluminium
• Tube: Presta valve
• Spokes: Sapim Leader
• Wheel size: 27.5
• Wheelhub: Shimano MT400, Shimano MT401
• Carrier: StandWell system carrier, XLC Carrymore

Handlebar and saddle

• Saddle: Haibike Components
• Seat post: patent, 34.9 mm, aluminium
• Handlebar: Haibike Components TheBar ++, 740 mm
• Grips: XLC Comfort bo3
• Stem: Haibike Components The Stem ++, A-head, Handlebar diameter: 31.8 mm

Geometry

• Top tube length (horizontal): 610, 624, 644, 669
• Seat tube length: 500, 540, 580, 620
• Seat tube angle: 73
• Head tube length: 160, 170, 180, 190
• Head tube angle: 66, 66.5
• Chain stay length: 470
• Bottom bracket drop: -60
• Wheelbase: 1190, 1199, 1220, 1247
• Reach: 412, 423, 440, 462
• Stack: 647, 659, 668, 677
