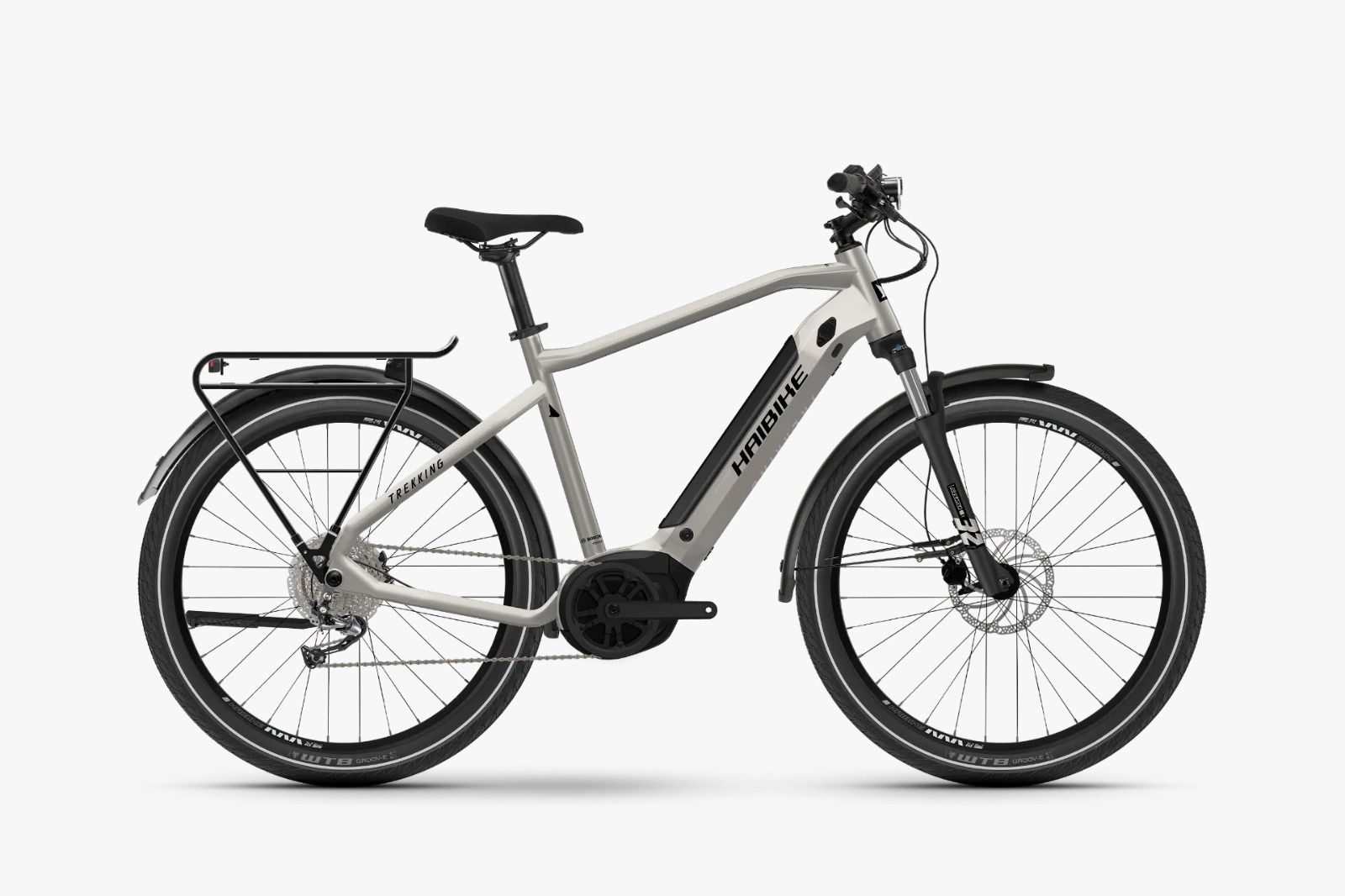

Haibike Trekking 3 - High High warm grey/black - gloss 2024

• Brand: Haibike
• Frame: Haibike aluminium, 27.5"
• Frame shape: 66_6
• Model name: Trekking 3
• Total perm. weight: 130
• Frame height: 48, 52, 56, 60
• Fork: SR Suntour XCM ATB HLO, steel spring, 65mm
• Dynamo: via system battery
• Mudguard: Eurofender Tempo, chromoplastics
• Head light: Trelock Bike - i Veo LS230, 20 lux
• Head set: A-Head Tapered
• Taillight: AXA Juno Ebike
• Kick stand: Ursus, adjustable
• Travel front: 65

Gear shift and brakes

• Gear shift: Shimano Cues U3020, 9 gears, Cues U4000, rapidfire
• Rear sprocket: Shimano Cues LG300-9, 11-36 teeth
• Chain: Shimano Cues LG500
• Brakes: Alhonga HT474, aluminium, 180mm / 180mm
• Brake lever: Alhonga HT474, aluminium
• Crank arm: Miranda Virage

Propulsion

• Drive unit: Bosch Performance Line Smart System, 250W, 25km/h, 75Nm
• Charger: Bosch
• Battery: Bosch PowerTube 500Wh
• Battery capacity: 500
• Display: Bosch Intuvia 100 + LED Remote
• Engine manufacturer: Bosch
• Engine torque: 75

Wheels and wheel components

• Tyres: WTB Groov-E, 62-584, Reflective stripes
• Rims: Schürmann Yak25, eyeleted, Hollow section rim, aluminium
• Tube: Dunlop valve
• Spokes: Sapim Leader
• Wheel size: 27.5
• Wheelhub: Haibike TheHub ++, Haibike TheHub ++
• Carrier: Massload luggage carrier system, MIK

Handlebar and saddle

• Saddle: Selle Royal Wave
• Seat post: XLC, patent, 31.6 mm, aluminium
• Handlebar: XLC, 720 mm
• Grips: ergo grips
• Stem: XLC A-head, A-head, Handlebar diameter: 31.8 mm

Geometry

• Top tube length (horizontal): 587, 608, 633, 658
• Seat tube length: 480, 520, 560, 600
• Seat tube angle: 73
• Head tube length: 155, 170, 180, 190
• Head tube angle: 67
• Chain stay length: 490
• Bottom bracket drop: -55
• Wheelbase: 1176, 1198, 1224, 1250
• Reach: 397, 414, 436, 458
• Stack: 622, 636, 645, 655
