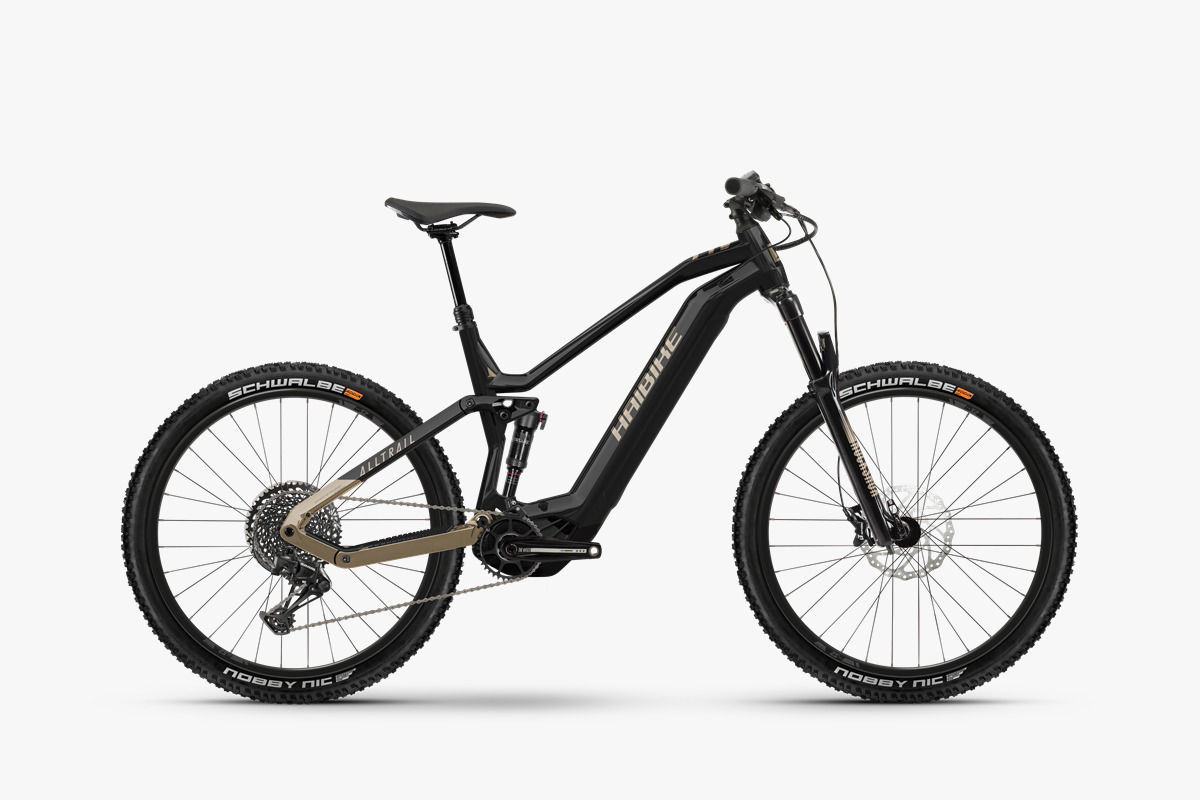

Haibike ALLTRAIL 7 27.5 720 Wh

• Brand: Haibike
• Frame: Haibike aluminium, 27.5", 140mm
• Frame shape: MTB Fully
• Model name: ALLTRAIL 7 27.5
• Total perm. weight: 150
• Frame height: 41, 44, 47
• Fork: RockShox 35 Gold RL, air, 140mm
• Damper: RockShox Deluxe Select Plus, air
• Inner bearing: 24_2
• Head set: Acros BlockLock
• Travel front: 140
• Travel rear: 150

Gear shift and brakes

• Gear shift: Sram SX Eagle, 12 gears, SX Eagle, trigger switch
• Rear sprocket: Sram Eagle PG1210, 11-50 teeth
• Chain: Sram SX Eagle
• Brakes: TRP Slate T4, aluminium, 203mm / 203mm
• Brake lever: TRP Slate T4, aluminium
• Chain guide: Nylon directmount
• Crank arm: Haibike Components The Crank ++

Handlebar and saddle

• Saddle: Selle Royal Vivo
• Seat post: Dropper-Post Remote, telescope, 34.9 mm, aluminium
• Handlebar: Haibike Components TheBar ++, 780 mm
• Grips: Haibike MTB grips
• Stem: Haibike Components TheStem ++, A-head, Handlebar diameter: 31.8 mm, 7˚

Propulsion

• Drive unit: Yamaha PW-X3, 250W, 25km/h, 85Nm
• Charger: Fast Charger 4A
• Battery: InTube 720Wh
• Battery capacity: 720
• Display: Yamaha Side Switch
• Engine manufacturer: Yamaha
• Engine torque: 85

Wheels and wheel components

• Wheel size: 27.5
• Tyres: Schwalbe Nobby Nic Evo SuperTrail, 65-584
• Rims: WTB ST i35 TCS, eyeleted, Hollow section rim
• Tube: Presta valve
• Spokes: Sapim Race, black
• Wheelhub: Haibike Components The Hub ++ Steckachse 15x110mm, Haibike Components TheHub ++ Steckachse 12x148

Geometry

• Top tube length (horizontal): 577, 593, 615
• Seat tube length: 410, 440, 465
• Seat tube angle: 75
• Head tube length: 130, 145
• Head tube angle: 65
• Chain stay length: 460
• Bottom bracket drop: -20
• Wheelbase: 1223, 1237, 1259
• Reach: 434, 453, 475
• Stack: 610, 623
• Seat tube offset: 23
