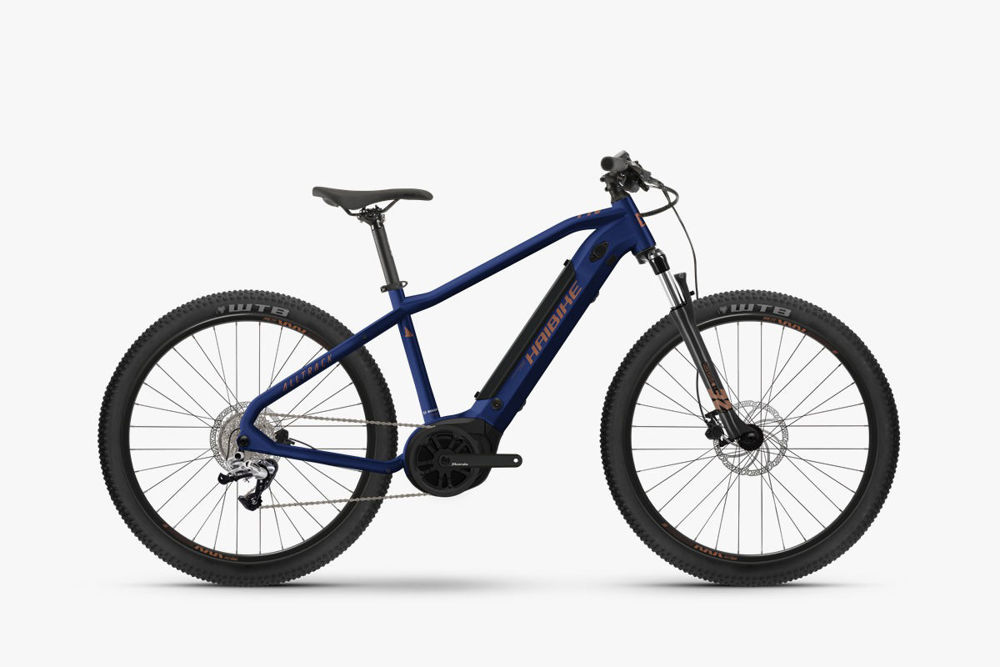

Haibike AllTrack 4 29 MTB Hardtail cool blue/leather - gloss

• Brand: Haibike
• Frame: Haibike aluminium, 29"
• Frame shape: MTB Hardtail
• Model name: AllTrack 4 29
• Total perm. weight: 120
• Frame height: 45, 49, 53
• Fork: SR Suntour XCM32 Boost DS, steel spring/oil, 120mm
• Inner bearing: 24_2
• Head set: A-Head Tapered
• Travel front: 120

Gear shift and brakes

• Gear shift: Shimano Alivio M3100, 9 gears, Alivio M3100, trigger switch
• Rear sprocket: Shimano HG200, 11-36 teeth
• Chain: KMC e9S
• Brakes: Alhonga HT472, aluminium, 180mm / 180mm
• Brake lever: Alhonga HT472, aluminium
• Crank arm: Miranda Virage

Handlebar and saddle

• Saddle: XLC MTB
• Seat post: XLC, patent, 31.6 mm, aluminium
• Handlebar: XLC, 720 mm
• Grips: XLC MTB grips
• Stem: XLC A-Head, A-head, Handlebar diameter: 31.8 mm

Propulsion

• Drive unit: Bosch Performance Line Smart System, 250W, 25km/h, 75Nm
• Charger: Bosch
• Battery: Bosch PowerTube 500Wh
• Battery capacity: 500
• Display: Bosch LED Remote
• Engine manufacturer: Bosch
• Engine torque: 75

Wheels and wheel components

• Wheel size: 29
• Tyres: WTB Ranger Comp, 55-622
• Rims: Schürmann Yak25, eyeleted, Hollow section rim, aluminium
• Tube: Presta valve
• Spokes: Sapim Leader, black
• Wheelhub: Alunabe, Alunabe

Geometry

• Top tube length (horizontal): 606, 639, 671
• Seat tube length: 450, 490, 530
• Seat tube angle: 75
• Head tube length: 120, 135, 160
• Head tube angle: 65
• Chain stay length: 495
• Bottom bracket drop: -64, -69
• Wheelbase: 1251, 1278, 1323
• Reach: 427, 457, 483
• Stack: 653, 661, 684
