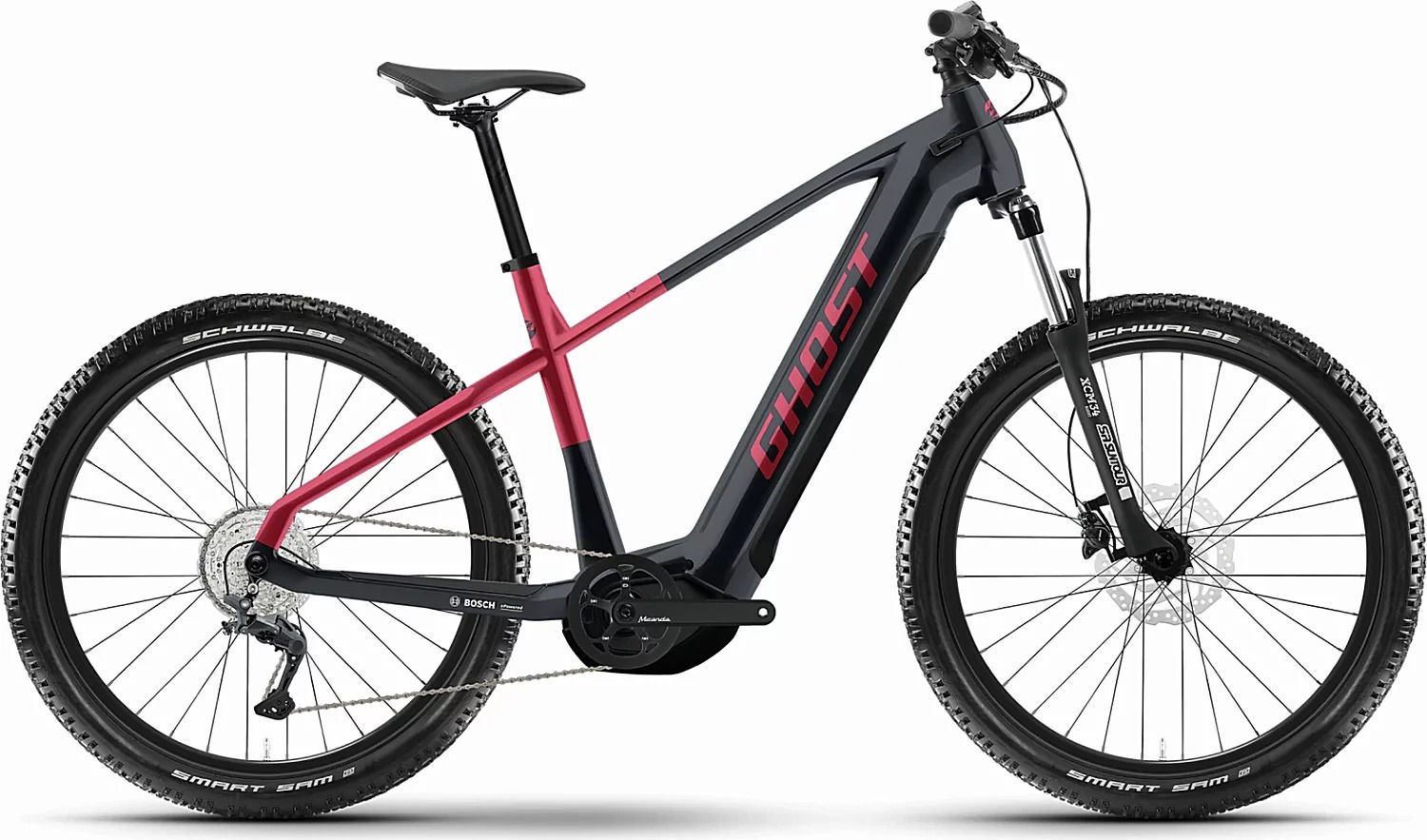

GHOST E-TERU Universal Bosch Power Tube 625 Wh size L - XL 2024

BOSCH LINK

Bike Geometry

• Bottom bracket drop [mm]: 60 mm
• Chain stay length [mm]: 465 mm
• Head tube angle: 68 degrees
• Head tube length [mm]: 155 mm
• Reach [mm]: 443 mm
• Stack [mm]: 670 mm
• Stand over height [mm]: 725 mm
• Seat tube angle: 74 degrees
• Seat tube length [mm]: 500 mm
• Top tube length [mm]: 635 mm
• Wheelbase [mm]: 1198 mm

Brake system

• Brake Front Mount: Post Mount
• Brake Rear Mount: Post Mount
• Brake Front Description: TRP, Hydraulic Disc brake, Slate T4 HD-M807, 203 mm
• Brake Rear Description: TRP, Hydraulic Disc brake, Slate T4 HD-M807, 203 mm
• Brake Lever Description: TRP, Slate T4 Aluminium
• Brake Rotor Description: TRP, RC04E, 2.3 mm, 203 mm, Centerlock

Drivetrain

• Cassette Teeth: 11-48T
• Crank Arm length: 170
• Crankset Teeth: 38T
• Crankset Type: single
• Number Of Gears: 10
• Pedal Inclusive: Yes
• Cassette Description: MicroSHIFT, Advent X CS-H104 10s, HG
• Chain Description: Shimano, CN-LG500
• Crankset Description: Miranda, Virage
• Derailleur Hanger Description: Sram, UDH
• Derailleur Rear Description: MicroSHIFT, Advent X RD-M6205GM 10s, Active Motion+
• Gear Description: MicroSHIFT, Derailleur
• Pedal Description: VP, VPE-527
• Shifter Right Description: MicroSHIFT, Triggershift, Advent X SL-M9505-R

E-bike components

• Battery Capacity: 625 Wh
• Battery Location: Powertube
• Motor Torque [nm]: 85 Nm
• Motor Location: Center
• Battery Description: Bosch, InTube 625 Wh
• Charger Description: Bosch, Charger 4A 220-240V
• Display Description: Bosch, LED Remote
• Motor Description: Bosch, Performance Line CX

Frame and more

• Framesize Convection: L
• Max loadable weight (KG): 120 kg
• Front Fork Type: Suspension
• Suspension Type: Hardtail
• Travel Front: 120 mm
• Front Fork Description: Suntour, XCM34 Boost 120 mm
• Frame Description: HIGH, Aluminium, Uni

Handlebar and Saddle

• Handlebar Diameter: 31.8 mm
• Handlebar Rise: 27
• Handlebar Width: 740 mm
• Seatpost Material: Aluminium
• Stem Length: 45 mm
• Handgrip Description: Ghost, MTB Grip
• Handlebar Description: Ghost, Riser Bar, Ground Fiftyone Dia. 31.8 mm, Rise: 27 mm
• Headset Description: Feimin, Semi-integrated, H856 + Acros Blocklock
• Saddle Description: Selle Royal, Vivo 1216HRN
• Seatpost Description: Ghost, Non Suspension, Dia. 34.9 mm, L: 400 mm, 400 mm
• Stem Description: Ghost, Dia. 31.8 mm, L: 45 mm

Wheels and wheel components

• Wheel Size: 29
• Hub Front Description: Shimano, HB-TC500 15x110 mm
• Hub Rear Description: Shimano, FH-TC500 12x148 mm
• Rim Description: Schurmann, Yak Disc 25
• Rim Rear Description: Schurmann, Yak Disc 25
• Spoke Description: DT Swiss, FACTORY 2.0
• Tyre Description: Schwalbe, Smart Sam 2.35
• Tyre Rear Description: Schwalbe, Smart Sam 2.35
• Wheelsize Description: 29, 29
