| Product |

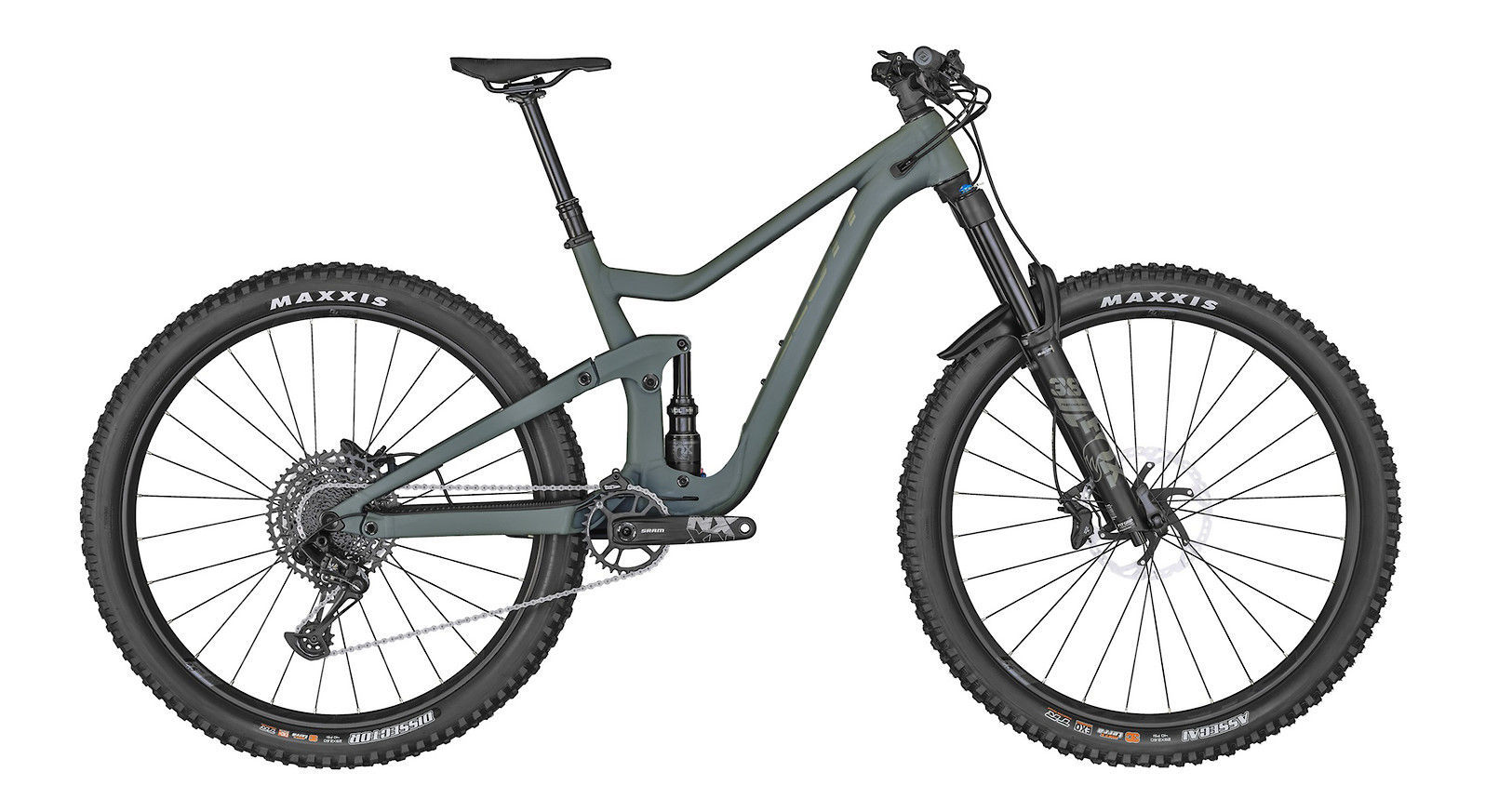

Scott Ransom 920 Bike |
|---|
| Model Year |
2022 |
|---|
| Riding Type |
Enduro / All-Mountain, Freeride / Bike Park |
|---|
| Rider |
Unisex |
|---|
| Wheel Size |
29" |
|---|
| Frame Material |
Aluminum |
|---|
| Frame Material Details |
6011 SL custom-butted alloy; molded chainstay and down tube protection |
|---|
| Rear Travel |
170mm |
|---|
| Rear Shock |
FOX FLOAT DPS NUDE T, EVOL, 3-mode adjust via Scott TwinLoc TSP (Lockout, Traction Control, Descend), rebound adjust, trunnion mount, 205mm x 65mm |
|---|
| Fork |
FOX FLOAT 38 Performance, GRIP damper, 3-mode adjust via Scott TwinLoc TSP (Lockout, Traction Control, Descend), rebound adjust, 44mm offset, includes FOX fender |
|---|
| Fork Travel |
170mm |
|---|
| Head Tube Diameter |
Tapered, 1.125" top, 1.5" bottom |
|---|
| Headset |
Syncros Pro Press Fit E2 |
|---|
| Handlebar |
Syncros Hixon 1.5, 2014 double-butted alloy, 780mm width, 20mm rise, 8° sweep, 31.8mm clamp diameter |
|---|
| Stem |
Syncros XM1.5, 6061 alloy, 50mm length, 0° rise, 31.8mm bar clamp |
|---|
| Grips |
Syncros Pro, lock-on |
|---|
| Brakes |
Shimano Deore M6120, 4-piston, Shimano RT76 6-bolt rotors (203mm front, 180mm rear) |
|---|
| Brake Levers |
Shimano Deore M6120 |
|---|
| Drivetrain |
1x |
|---|
| Shifters |
SRAM NX Eagle, 12-speed |
|---|
| Front Derailleur |
None |
|---|
| Rear Derailleur |
SRAM NX Eagle, 12-speed |
|---|
| ISCG Tabs |
ISCG05 |
|---|
| Chainguide |
Scott upper slider |
|---|
| Cranks |
SRAM NX Eagle DUB |
|---|
| Chainrings |
SRAM NX Eagle, 32 tooth |
|---|
| Bottom Bracket |
SRAM DUB, 92mm PressFit |
|---|
| Pedals |
None |
|---|
| Chain |
SRAM NX Eagle, 12-speed |
|---|
| Cassette |
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth |
|---|
| Rims |
Syncros Revelstoke 2.5 wheelset, 30mm width, 28 hole, tubeless ready |
|---|
| Hubs |
Syncros Revelstoke 2.5 wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver |
|---|
| Spokes |
Syncros Revelstoke 2.5 wheelset |
|---|
| Tires |
Front: Maxxis Assegai, 3C MaxxTerra, EXO, TR, 120 TPI, foldable, 29" x 2.6"
Rear: Maxxis Dissector, 3C MaxxTerra, EXO+, TR, 120 TPI, foldable, 29" x 2.6" |
|---|
| Saddle |
Syncros Kaslo 2.0, CrMo rails |
|---|
| Seatpost |
Syncros Duncan 2.0 dropper, remote integrated with Scott TwinLoc lever
Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL) |
|---|
| Seatpost Diameter |
31.6mm |
|---|
| Seatpost Clamp |
Single bolt |
|---|
| Rear Dropout / Hub Dimensions |
148x12mm Boost |
|---|
| Max. Tire Size |
29" x 2.6" or 27.5" x 2.8" |
|---|
| Bottle Cage Mounts |
One inside front triangle |
|---|
| Colors |
Dark Grey |
|---|
| Warranty |
5 years frame |
|---|
| Weight |
35 lb 2.6 oz (15,950 g) |
|---|
| Miscellaneous |
• VLK Virtual 4 Link rear suspension design
• Scott TwinLoc TSP system provides three suspension modes (Lockout, Traction Control, Descend) for shock and fork via handlebar-mounted remote
• Rear travel by mode: Lockout 0mm; Traction Control 120mm; Descend 170mm
• Internal cable routing
• Compatible with 27.5+ wheels (geometry adjustable via flip chip at upper shock mount) |
|---|
